AX-70

Doors & Windows

Description

AX-70 is a premium window and door system offering elegance, strength, energy efficiency, and versatility. Its slender exterior contours make it ideal for both new-build projects and replacing steel/wooden frames while maintaining the original design. Compatible with various inward and outward opening types, it ensures adaptability for diverse architectural needs.

Key Features

  • Inward-outward opening window system
  • Basic profile depth: 68 mm
  • Opening types: Side-hung, top-hung, double-leaf, parallel pop-out, tilt & turn
  • Versatile design for multiple configurations

    • ‍

    Dimensions

  • Vent size (Casement): 1500 mm x 2000 mm
  • Vent size (Top-hung): 800 mm x 1800 mm
  • Vent size (Parallel Pop-Out): 1500 mm x 2400 mm
  • Vent size (Tilt & Turn): 800 mm x 2400 mm
  • Vent size (Door): 1200 mm x 3600 mm

    • ‍

    ‍

    Technical Specifications

  • Glazing thickness: 38 mm to 52 mm
  • Profile powder coating
  • Maximum vent weight: 120 kg (Window)
  • Maximum vent weight: 200 kg (Door)
  • Multi-point locking system
  • Fittings: Black

    • ‍

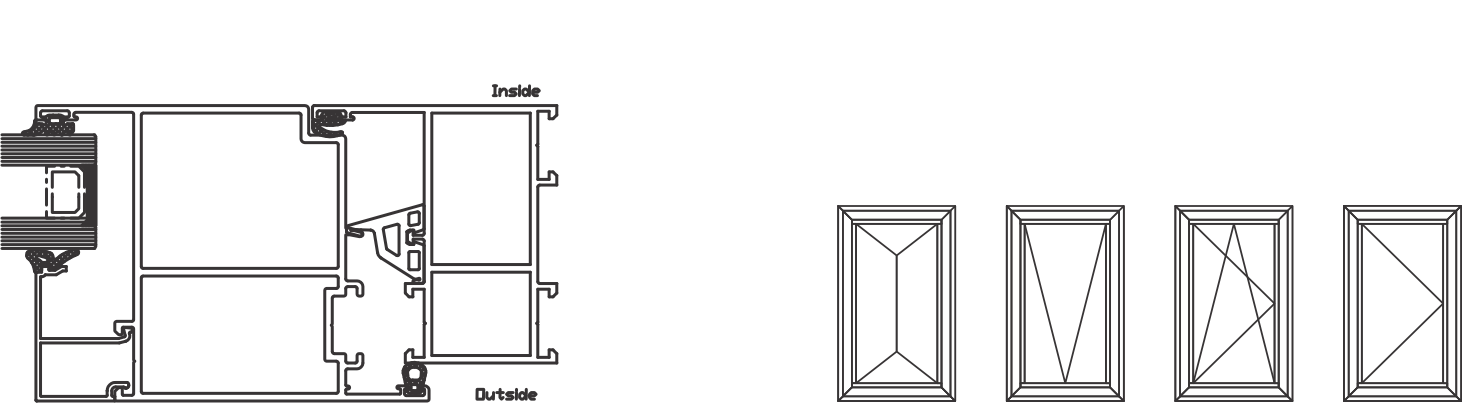

    Technical Diagram
