Ax-50

Doors & Windows

Description

AX-50 is a window system that combines ultimate elegance with elevated strength and ease in operational. ideal system for new-build constructions as well as for the replacement of steel-framed/wooden windows. All types of side or top hung inward/outward opening windows are available with hinges or friction stays.

Key Features

  • Inward/outward opening window system
  • Basic profile depth: 50 mm
  • EPDM gaskets for proper sealing and gripping
  • Multiple opening types: Side-hung, top-hung, double-vent, tilt & turn, parallel pop-out
  • Surface-mounted fittings

    • ‍

    Dimensions

  • Vent size (Side-hung): 1200 mm x 2200 mm
  • Vent size (Top-hung): 800 mm x 1800 mm
  • Vent size (Tilt & Turn): 800 mm x 1600 mm
  • Vent size (Parallel Pop-out): 1500 mm x 2400 mm
  • Vent size (Door): 1000 mm x 3600 mm / 1200 mm x 3000 mm

    • ‍

    Technical Specifications

  • Glazing thickness: 5 mm to 34 mm
  • Fittings: Black
  • Maximum vent weight: 90 kg (Window)
  • Maximum vent weight: 150 kg (Door)
  • Maximum opening angle: up to 90°
  • Multi-point locking system

    • ‍

    ‍

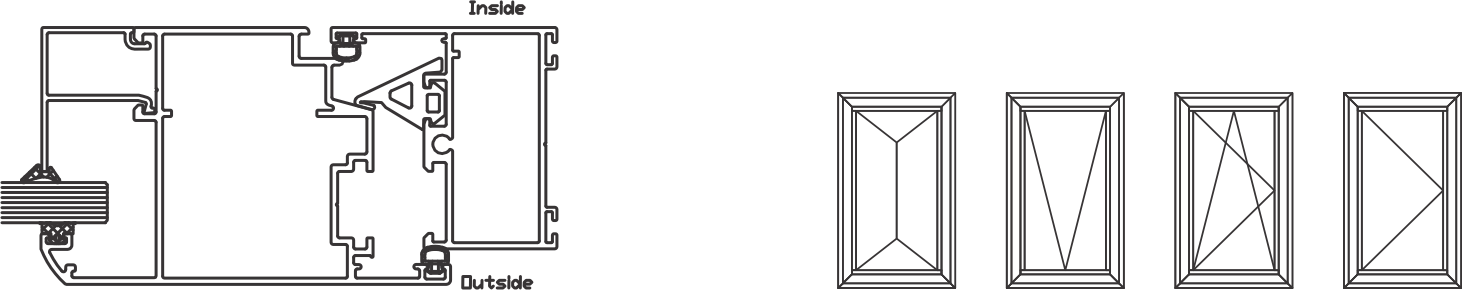

    Technical Diagram
