AX-40

Doors & Windows

Description

AX-40 is a high-performance aluminium system combining aesthetic design with energy efficiency. Designed for all standard inward and outward opening window and door applications, it ensures ease in fabrication, production, and assembly. Its sleek profile system enhances visual appeal while allowing integration with the Vayu system for improved indoor air quality.

Key Features

  • Inward-outward opening window system
  • Basic profile depth: 40 mm
  • Sleek profile system

    • ‍

    ‍

    Dimensions

  • Vent size (Casement): 900 mm x 1600 mm
  • Vent size (Top-hung): 900 mm x 1600 mm
  • Vent size (Tilt & Turn): 800 mm x 1600 mm
  • Vent size (Door): 1000 mm x 3000 mm

    • ‍

    Technical Specifications

  • Glazing thickness: 4 mm to 24 mm
  • Profile powder coating
  • Fittings: Black
  • Maximum vent weight: 75 kg (Window)
  • Maximum vent weight: 120 kg (Door)
  • Multi-point locking system

    • ‍

    ‍

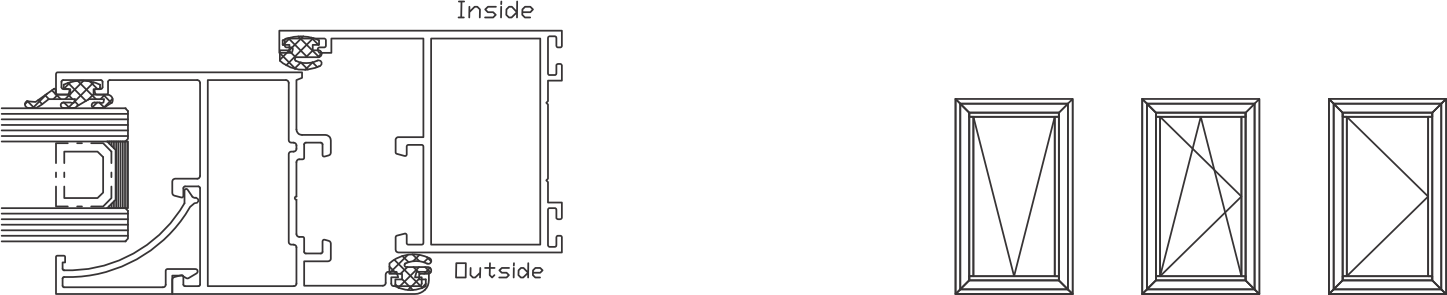

    Technical Diagram
