SL 75MR

Sliders

Description

Axsys sliding and elements are the perfect answer to the increasing demand for safety and durability and design. They are combined with strong technical performances to make up a highly innovative system. offers an enhanced burglary resistance.

Key Features

  • Slider for high-end home applications (Exterior & Interior)
  • Basic profile depth of vent profile: 75 mm
  • Narrow face width with a higher glass-to-frame ratio
  • Slim 35 mm interlock design

    • ‍

    ‍

    ‍

    Dimensions

  • Maximum vent size (W x H): 2000 mm x 3200 mm
  • Wind load resistance: 3 kPa

    • ‍

    ‍

    Technical Specifications

  • Glazing glass thickness: 8 mm to 26 mm
  • Profile powder coating
  • Fittings available in Black/White
  • Multi-point locking system
  • Maximum vent weight: 200 kg

    • ‍

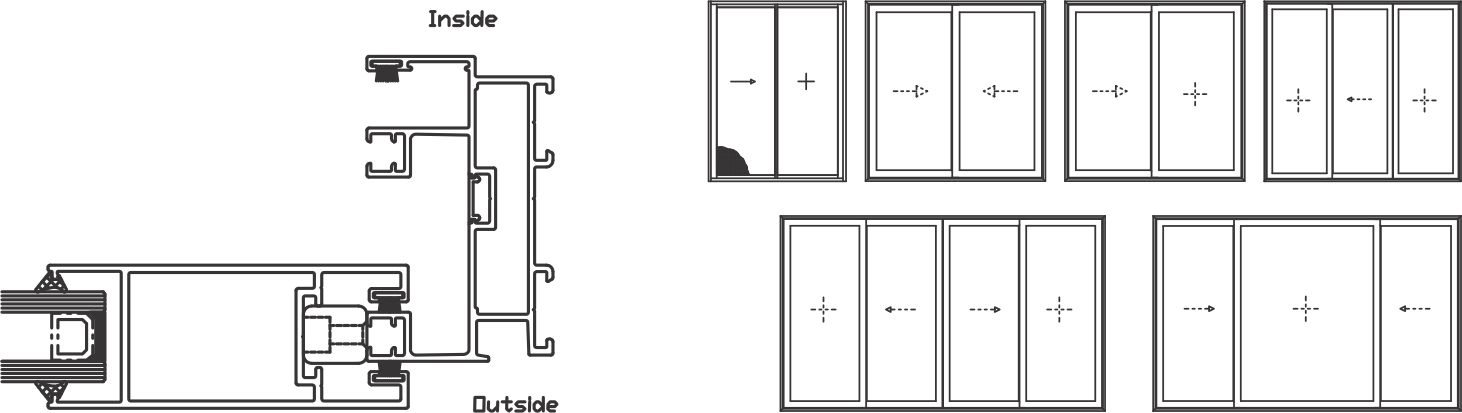

    Technical Diagram
